Description
What is the process of making the poly steel mooring rope?
Fiber manufacturing. We use a mixture of 70% primary polypropylene and 30% high-density polyethylene as the main raw materials. In addition, we will add some additives to improve the performance of the rope. Then, we put the prepared raw materials into an extruder to make steel fibers. Primary fiber is like a thick noodle. After multiple stretches, it became a thin and flat fiber. This produces Danlan fiber, with a minimum toughness of 7.5 grams per denier, which is the highest gram per denier of any fiber commonly used in the manufacture of polypropylene or polyethylene ropes. The fiber manufacturing process is the most important process that determines most of the properties of ropes, such as tensile strength, wear resistance, UV resistance, etc.
Why choose our poly steel mooring rope?
Customer satisfaction is at the heart of everything we do. We strive to supply the highest quality products, at the best possible price. Which is why, we only work with the best overseas partners and all ship mooring lines are rigorously checked to make sure they comply with our strict standards.
We’re always on hand and happy to help. So, if you have any questions or queries, please feel free to get in touch. Email us at by001@boyuanrope.com and we’ll respond to your enquiry as soon as possible.
Features
specific weight – 0,93 g/cm3 (do not sink in water)
melting temperature – 150°C
resistance to chemical, acids, alkalines and oils
do not absorb water
color on request of the customer (wide color range)
Approximately 30% stronger than polypropylene / polyethylene
18% elongation at break
Excellent UV protection
Superior abrasion resistance
No loss of strength when wet
Stores wet
Resists rot and mildew
Available in a variety of colors
Application

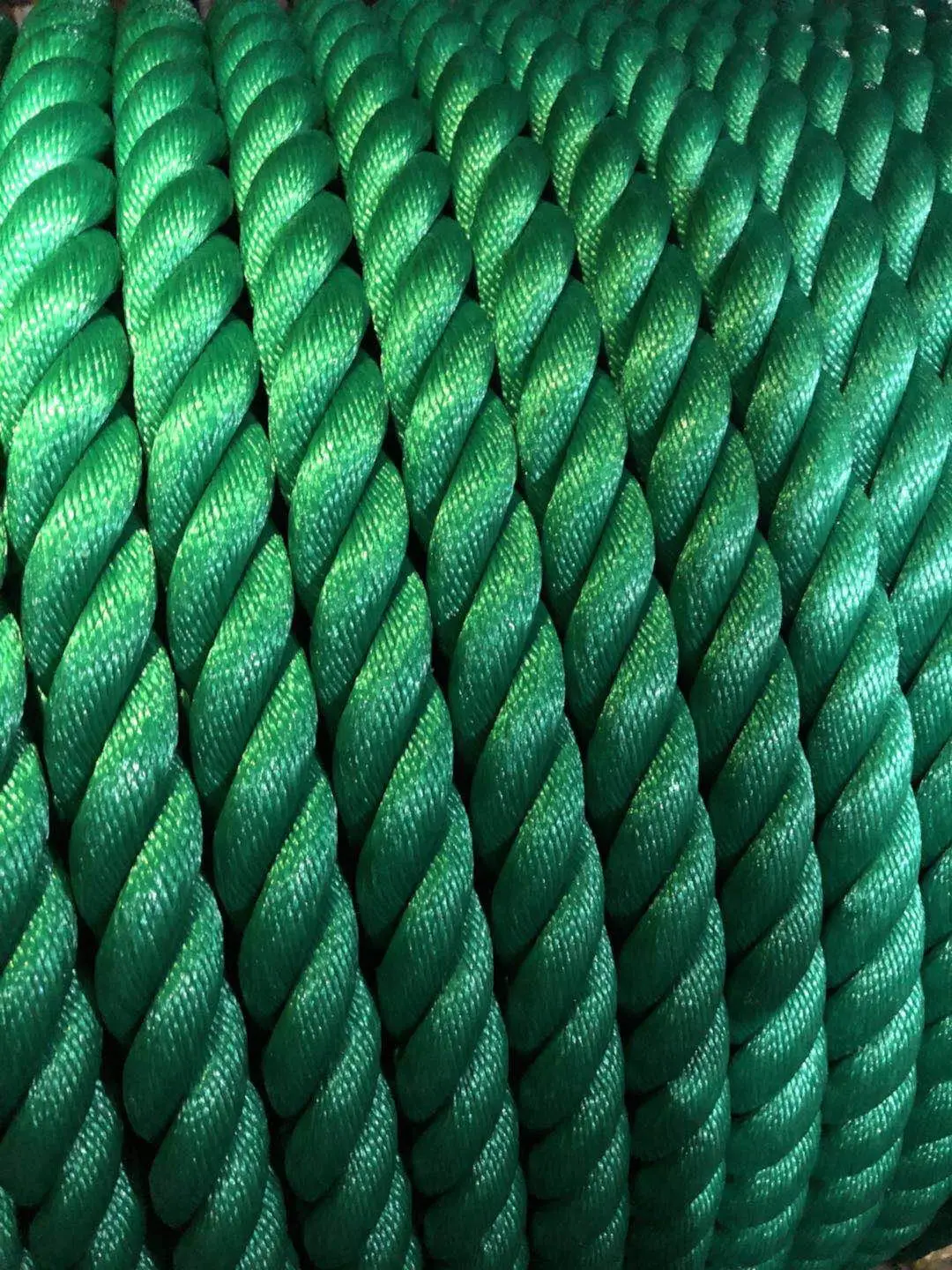

32mm poly steel rope is a high-quality universal rope mainly used in the fishing, mooring, and towing industries. It is particularly suitable for marine applications, including mooring lines, towing cables, mooring pendants, and fishing nets.
Technical Data
Polysteel mooring rope
| Size | Weight | MBL(Unspliced) | LDBF(Spliced) | ||||
|---|---|---|---|---|---|---|---|
| Dia.mm | Cir.inch | g/m | kgs/220m | kN | ton | kN | ton |
| 24 | 3 | 289 | 64 | 131 | 13.4 | 118 | 12 |
| 28 | 3-1/2 | 394 | 87 | 174 | 17.8 | 157 | 16 |
| 32 | 4 | 511 | 112 | 223 | 22.8 | 201 | 20 |
| 36 | 4-1/2 | 641 | 141 | 277 | 28.3 | 249 | 25 |
| 40 | 5 | 791 | 174 | 342 | 34.9 | 308 | 31 |
| 44 | 5-1/2 | 977 | 215 | 409 | 41.7 | 368 | 38 |
| 48 | 6 | 1146 | 252 | 479 | 48.9 | 431 | 44 |
| 50 | 6-1/4 | 1246 | 274 | 512 | 52.2 | 461 | 47 |
| 52 | 6-1/2 | 1341 | 295 | 554 | 56.5 | 499 | 51 |
| 56 | 7 | 1559 | 343 | 636 | 64.9 | 572 | 58 |
| 60 | 7-1/2 | 1791 | 394 | 729 | 74.4 | 656 | 67 |
| 64 | 8 | 2036 | 448 | 822 | 83.9 | 740 | 75 |
| 68 | 8-1/2 | 2300 | 506 | 935 | 95.4 | 842 | 86 |
| 70 | 8-3/4 | 2436 | 536 | 991 | 101.1 | 892 | 91 |
| 72 | 9 | 2582 | 568 | 1034 | 105.5 | 931 | 95 |
| 75 | 9-3/8 | 2796 | 615 | 1122 | 114.5 | 1010 | 103 |
| 80 | 10 | 3191 | 702 | 1273 | 129.9 | 1146 | 117 |
| 85 | 10-5/8 | 3605 | 793 | 1432 | 146.1 | 1289 | 132 |
| 88 | 11 | 3859 | 849 | 1538 | 156.9 | 1384 | 141 |
| 90 | 11-1/4 | 4036 | 888 | 1607 | 164 | 1446 | 148 |
| 95 | 11-3/4 | 4496 | 989 | 1765 | 180.1 | 1589 | 162 |
| 100 | 12-1/2 | 4982 | 1096 | 1957 | 199.7 | 1761 | 180 |
| 104 | 13 | 5359 | 1179 | 2117 | 216 | 1905 | 194 |
| 112 | 14 | 6232 | 1371 | 2455 | 250.5 | 2210 | 225 |
