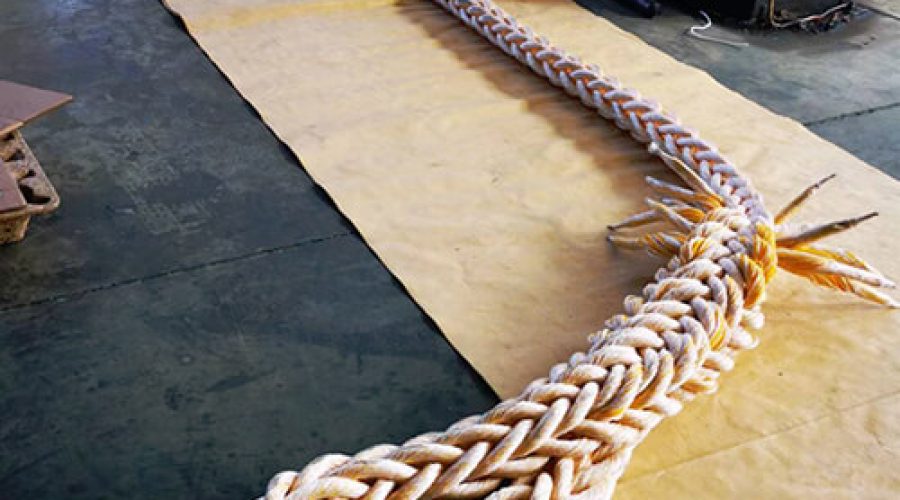

Conventional mooring tails force compromises between strength, buoyancy, and fatigue resistance. The PP (polypropylene) and polyester mixed tail resolves this paradox through deliberate material engineering. This 350kN MBL (Minimum Breaking Load) solution leverages intrinsic polymer properties to outperform monolithic fiber ropes across critical maritime operational parameters.
Advanced Material Synergy
Polypropylene delivers essential positive buoyancy (specific gravity: 0.91), reducing submerged weight by 30-35% versus all-polyester equivalents. This preserves optimal catenary curvature—dynamically absorbing shock loads while minimizing anchor uplift forces. Its innate resistance to chemicals, UV degradation, and hydrolysis ensures longevity in splash zones and aggressive marine environments where saltwater corrosion accelerates failure.
Polyester provides the structural backbone with quantifiable advantages:
– Ultra-low creep (<1.8% @ 30% MBL/24h) maintains tension integrity during prolonged static loads
– Tensile strength dominance (800-900 MPa) withstands peak loads at fairleads
– Abrasion resistance exceeds ISO 1346 standards at chafe points
– Fatigue endurance shows <5% strength loss after 100,000 tension cycles (DNVGL-OS-E302 testing)
Structural Intelligence
Precision triple-braided construction balances radial load distribution while preventing hockling and rotation-induced torsion. Abrasion-resistant polyamide (PA) sleeves reinforce splice termini and fairlead contact zones. Controlled elongation (≈12% at 50% MBL) optimizes energy dissipation without permanent deformation. Crucially, the hybrid design mitigates internal heat buildup during cyclic loading—a key failure mode in pure PP ropes.
Operational Validation
– Safety: 40% weight reduction versus steel wire tails lowers handling injuries
– Durability: 20% longer service life versus standard PP ropes under cyclic loading
– Cost Efficiency: 30% lower lifetime cost despite 15-20% upfront premium over all-PP tails
– Installation: Color-coded yarns simplify inspection for compromised strands
Maintenance Protocol
Rinse with freshwater quarterly; inspect sleeves every 6 months for UV cracking; retire at 90% original MBL. Avoid sharp bending radii <8× rope diameter.
This hybrid exemplifies marine polymer synergy—transforming buoyancy and tensile brawn into certified resilience for offshore mooring systems confronting extreme wave dynamics and corrosive environments.
